Menu Labels
 |

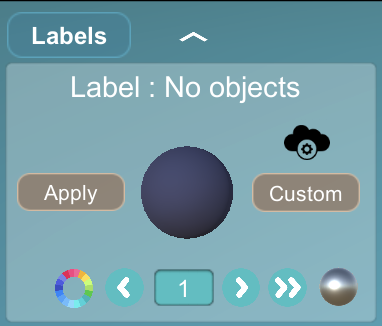

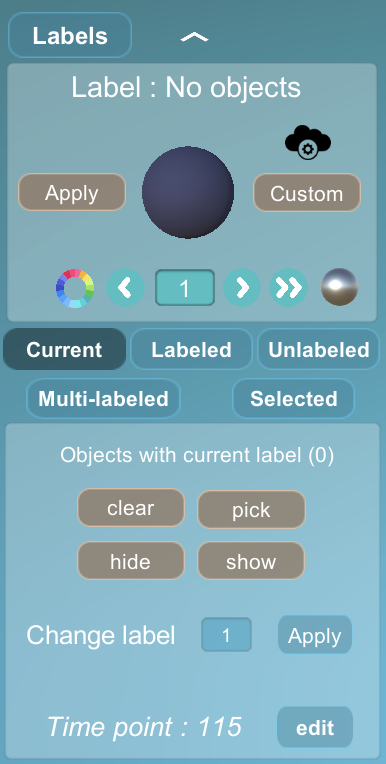

In this menu, users can interact with each object of the dataset. |
|---|---|
 |
Apply a label to selected object(s), recover the label previously applied to selected objects, scroll through available labels or upload/download manually-modified labels lists. |
|---|---|
 |
Go to previous/next label, modify the current label to a specific number, or find the next free label. |
 |
Changes label to be the one of the currently selected object(s), if they have one. For example, if you click on this button when the selected item has label number 55, you will move to label number 55. |
 |
Open the label color customization menu |
 |
From the previous section : By clicking on |
|---|---|

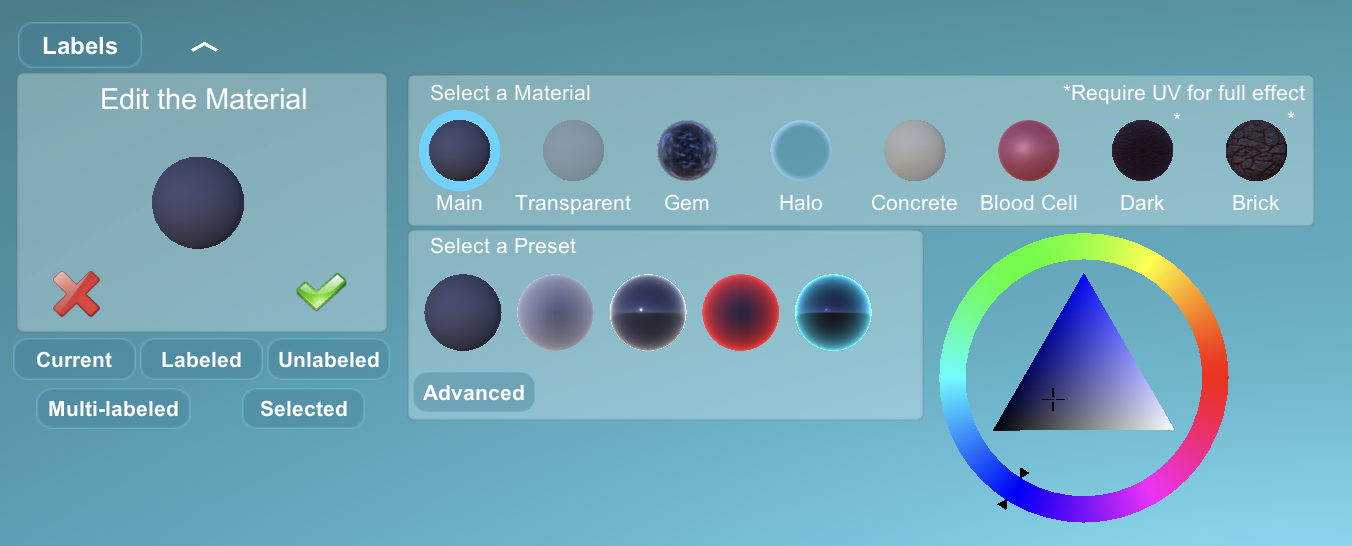

users can manually modify label color and style, using a range of materials and presets. The customized material can be viewed in the left-hand panel.  |

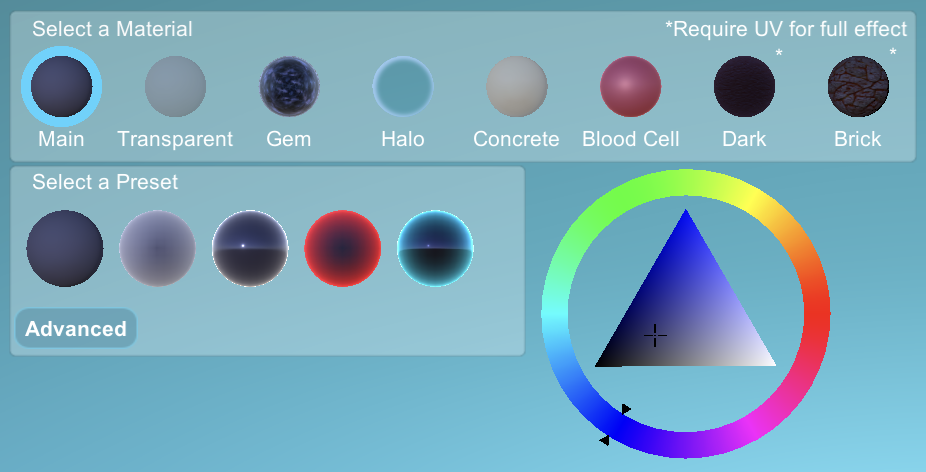

In this menu, users can modify their current material by selecting a material style from the list at the top. They can then select one of the presets by clicking on one of the spheres in the "select preset" menu. They can freely choose the color using the color wheel. |
|---|---|
 |

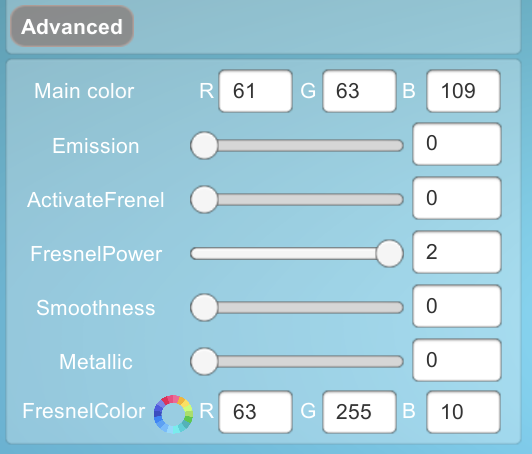

From the previous section : By clicking on the Advanced button, users can access advanced parameters for the selected material to enable fine-tuning. These parameters are numbers that can be set using sliders or text fields, or colors that can be set using text fields or the color wheel. |
|---|---|
 |
From a previous section : By clicking on |
|---|---|
 |
Apply the currently selected colormap. |
 |
Delete the currently selected colormap from the database (this button only appears when you have created the colormap). |
 |
Share the colormap with all users on this dataset. If the icon is green, the colormap is shared, if it is red, it is private (this button only appears when you have created the colormap). |
 |
Download the currently selected colormap as a text file. The file may open in another tab, in which case you need to save the text as a .txt file. |

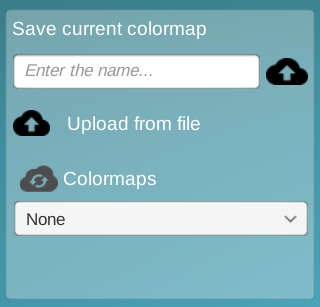

Users can save a manually edited list of color selections or load previously saved selections, which can then be applied to the current dataset or deleted from the database. You can also download a color map as a file. You can also download it in text format. A series of buttons may appear depending on the color map selected : |

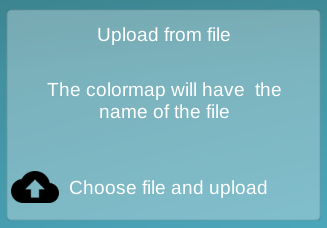

From the previous section : By clicking on Upload from file users can save a colormap stored as a file to the server. The colormap will have the name of the file. The colormap must be of a correct format to be readable, for instance a colormap you or someone else downloaded from another dataset. |
|---|---|
 |

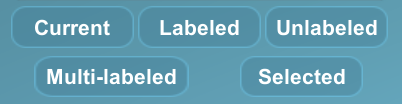

Open the corresponding panels in the interface : |
|---|---|
| Current | Manage object(s) assigned to the current label |

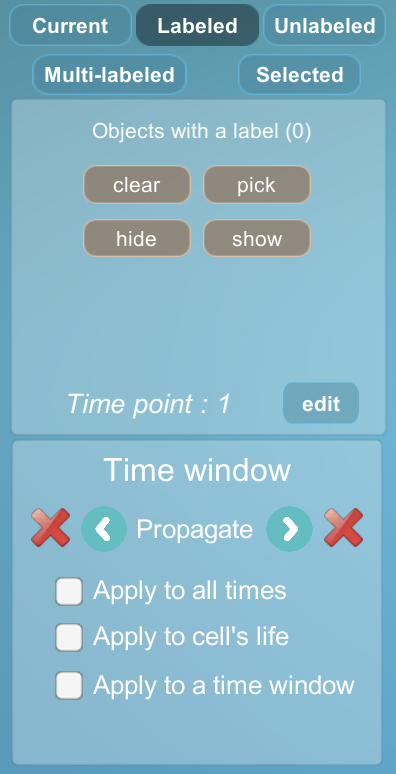

| Labeled | Manage all object(s) assigned to a label |

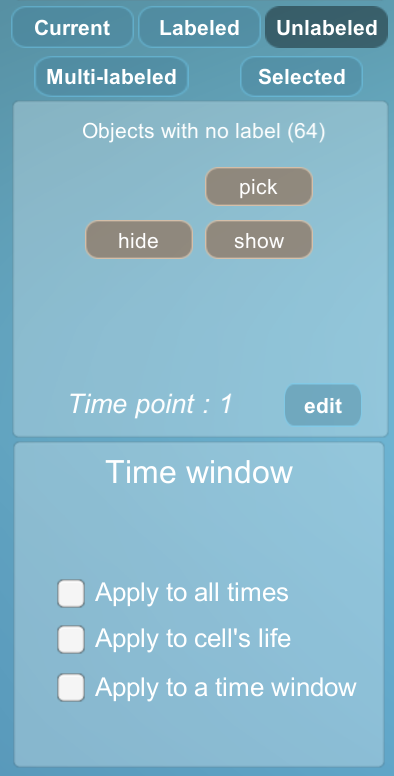

| Unlabeled | Manage all object(s) not assigned to a label |

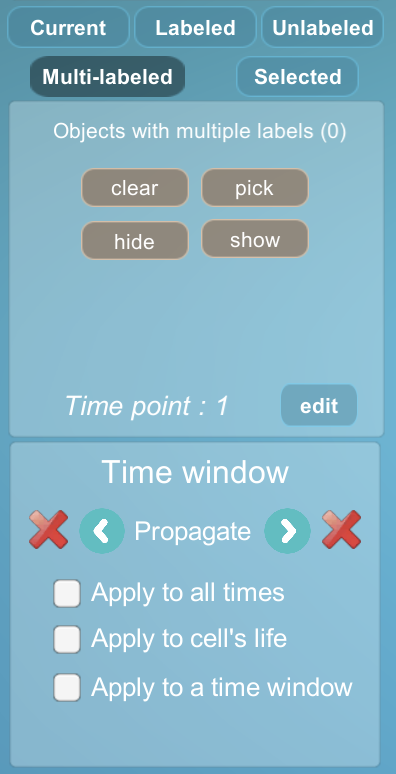

| Multi-labeled | Manage all object(s) assigned to 2 or more labels |

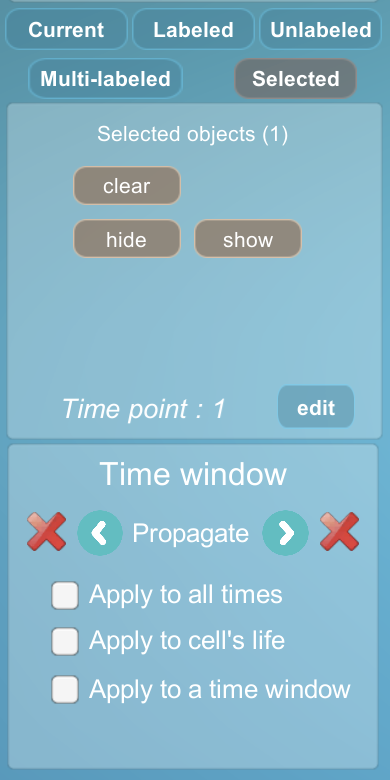

| Selected | Manage object(s) that are selected |
 |
Clear : Remove current label from assigned object(s) |
|---|---|
 |
Clear : Remove current label from assigned object(s) |
|---|---|
 |
Clear : Remove current label from assigned object(s) |
|---|---|
 |
Select : Select all objects assigned to the current label |
|---|---|
 |
Clear : Remove current label from assigned object(s) |
|---|---|
